Heavy Duty Fork Lift Big Forklift Diesel Load Container Forklift 35 Ton container forklift specifications Item  CPCD350 Features Rated Load Kg 35000 Load Center mm 1220 Wheelbase mm 5000 Weight Weight kg  42000 Chassis Tire Specs:Front   16.00-25 Tire Specs:Rear 14.00-24 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 2270 Wheel tread:Rear mm 2300 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 4060 Mast lifting height mm 4000 Max.height mm 6030 height to head guard(height to cab) mm 3560 Overall height（with forks)                                       mm 9850 Fork front verticaal sueface to the rear end of the vehicle  mm 7450 Overall width mm 3360 Fork dimension mm 2400*320*120 Fork carriage width mm 3130 Mast min ground(with load) mm 350 Wheelbase center min ground(with load) mm 400 Min.turning Radius mm 7650 Travel speed(with load/without load) km/h 25/28 Front overhang mm 1080 Rear overhang mm 1220 Performance Max.lifting speed(with load/without load) mm/s 260/280 tractionn KN 200 gradeability(with load/without load) % 20/20 Driving brake Hydraulic clamp disvc Engine Engine brand/model WeiChai Engine WD10G240E21 Rated Output 175(Kw) Dongfeng cummins 6CTA8.3-C260-II Rated Output 194(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1

FD250 25 Ton Yellow Container Handler Heavy Duty Forklift Largest Diesel Forklift With 1800mm Fork 25 tonne forklift Specifications Item  CPCD250 Features Rated Load Kg 25000 Load Center mm 1220 Wheelbase mm 4400 Weight Weight kg  33500 Chassis Tire Specs:Front   14.00-24 Tire Specs:Rear 14.00-24 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 2220 Wheel tread:Rear mm 2300 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 3970 Mast lifting height mm 4000 Max.height mm 5940 height to head guard(height to cab) mm 3480 Overall height（with forks)                                       mm 9040 Fork front verticaal sueface to the rear end of the vehicle  mm 6640 Overall width mm 3060 Fork dimension mm 2400*280*105 Fork carriage width mm 3000 Mast min ground(with load) mm 350 Wheelbase center min ground(with load) mm 420 Min.turning Radius mm 6480 Travel speed(with load/without load) km/h 25/30 Front overhang mm 1010 Rear overhang mm 1220 Performance Max.lifting speed(with load/without load) mm/s 260/270 tractionn KN 160 gradeability(with load/without load) % 20/22 Driving brake Hydraulic clamp disvc Engine Engine brand/model WeiChai Engine WD10G220E21 Rated Output 162(Kw) Dongfeng cummins 6CTA8.3-C215-II Rated Output 160(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1

Heavy Diesel Forklift 30 Ton Forklift Internal Combustion Truck with Capacities of 30000kg Diesel Forklift Specifications Item  CPCD300 Features Rated Load Kg 30000 Load Center mm 1220 Wheelbase mm 4600 Weight Weight kg  36500 Chassis Tire Specs:Front   14.00-24 Tire Specs:Rear 14.00-24 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 2220 Wheel tread:Rear mm 2300 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 3970 Mast lifting height mm 4000 Max.height mm 5940 height to head guard(height to cab) mm 3480 Overall height（with forks)                                       mm 9460 Fork front verticaal sueface to the rear end of the vehicle  mm 7060 Overall width mm 3060 Fork dimension mm 2400*300*110 Fork carriage width mm 3000 Mast min ground(with load) mm 350 Wheelbase center min ground(with load) mm 450 Min.turning Radius mm 6600 Travel speed(with load/without load) km/h 24/28 Front overhang mm 1010 Rear overhang mm 1220 Performance Max.lifting speed(with load/without load) mm/s 260/280 tractionn KN 180 gradeability(with load/without load) % 20/22 Driving brake Hydraulic clamp disvc Engine Engine brand/model WeiChai Engine WD10G240E21（国二） Rated Output 175(Kw) Dongfeng cummins 6CTA8.3-C240-II Rated Output 179(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1

20 Ton Forklift Container Handling Equipment Heavy Forklift Specifications Item  CPCD200 Features Rated Load Kg 20000 Load Center mm 900 Wheelbase mm 4200 Weight Weight kg  30000 Chassis Tire Specs:Front   14.00-24 Tire Specs:Rear 12.00-24 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 2080 Wheel tread:Rear mm 2130 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 3930 Mast lifting height mm 4000 Max.height mm 5900 height to head guard(height to cab) mm 3360 Overall height（with forks)                                       mm 8500 Fork front verticaal sueface to the rear end of the vehicle  mm 6300 Overall width mm 2930 Fork dimension mm 2200*240*100 Fork carriage width mm 2930 Mast min ground(with load) mm 340 Wheelbase center min ground(with load) mm 420 Min.turning Radius mm 5940 Travel speed(with load/without load) km/h 26/30 Front overhang mm 980 Rear overhang mm 1020 Performance Max.lifting speed(with load/without load) mm/s 260/270 tractionn KN 140 gradeability(with load/without load) % 20/22 Driving brake Hydraulic clamp disvc Engine Engine brand/model WeiChai Engine WD10G220E21（国二） Rated Output 162(Kw) Dongfeng cummins 6CTA8.3-C215-II Rated Output 160(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1

Big Montacargas Forklift Truck 16 Ton Diesel Forklift with Fork Positioner Specifications Item  CPCD160 Features Rated Load Kg 16000 Load Center mm 900 Wheelbase mm 3800 Weight Weight kg  24000 Chassis Tire Specs:Front   12.00-24 Tire Specs:Rear 12.00-20 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 2070 Wheel tread:Rear mm 2130 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 3520 Mast lifting height mm 3500 Max.height mm 5240 height to head guard(height to cab) mm 3210 Overall height（with forks)                                       mm 7530 Fork front verticaal sueface to the rear end of the vehicle  mm 5730 Overall width mm 2750 Fork dimension mm 1800*200*100 Fork carriage width mm 2700 Mast min ground(with load) mm 300 Wheelbase center min ground(with load) mm 350 Min.turning Radius mm 5340 Travel speed(with load/without load) km/h 22/30 Front overhang mm 920 Rear overhang mm 960 Performance Max.lifting speed(with load/without load) mm/s 240/300 tractionn KN 130 gradeability(with load/without load) % 20/22 Driving brake Hydraulic clamp disvc Engine Engine brand/model WeiChai Engine WP6G175E22（国二） Rated Output 129(Kw) Dongfeng cummins 6BTAA5.9-C190-II Rated Output 142(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1

Heavy Duty Forklift 15 ton Small 16 ton Diesel Forklift Truck Specifications Item  CPCD160（C） Features Rated Load Kg 16000 Load Center mm 600 Wheelbase mm 3250 Weight  Weight kg  18000 Chassis Tire Specs:Front   12.00-20 Tire Specs:Rear 11.00-20 Tires Qty,front/rear(X-dreve wheels) 4/2 Wheel tread:Front mm 1680 Wheel tread:Rear mm 1760 Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 Mast height(fork lowering) mm 2990 Mast lifting height mm 3000 Max.height mm 4450 height to head guard(height to cab) mm 2780 Overall height（with forks)                                       mm 6660 Fork front verticaal sueface to the rear end of the vehicle  mm 5600 Overall width mm 2350 Fork dimension mm 1800*200*90 Fork carriage width mm 2260 Mast min ground(with load) mm 270 Wheelbase center min ground(with load) mm 310 Min.turning Radius mm 4700 Travel speed(with load/without load) km/h 22/30 Performance Max.lifting speed(with load/without load) mm/s 240/300 tractionn KN 120 gradeability(with load/without load) % 20/22 Driving brake Hydraulic clamp disvc Engine Engine brand/model Yuchai Engine YJ6J150-T301 Rated Output 110(Kw) Cylinder No 6 Others Transmission gears(Front/rear) 2/1 More Details

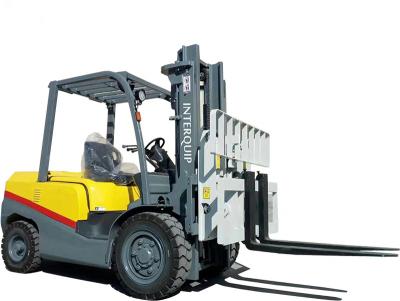

Automatic 5 Tons 4.5 Tons 5000 KG 4500KG Hydraulic Diesel Forklift with Forklift Clamp Attachment *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specification Specification FD50C 1 Fuel model Diesel 2 Load capacity kg 5000 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 0 6 Fork dimension mm 1070×150×50 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 3050 9 Groud clearance mm 140 10 Overhead guard height mm 2290 11 Front overhang mm 570 12 Max travel speed km/h 25 13 Max lift speed mm/s 430 14 Max.traction power KN 23 15 Max. gradeability % 18 16 Total length with fork mm 4520 17 Total length without fork mm 3300 18 Total width mm 1480 19 Mast extended height mm 4300 20 Mast lowered height mm 2190 21 Tyres Front 300-15-20PR 22 Type Rear 700-12-12PR 23 Wheelbase mm 2200 24 Tread mm 1180/1190 25 Service weight Kg 6900 26 Battery V/Ah （12/80）x2 27 Engine model XINCHAI 4D35 28 Engine power kw/r.p.m 60 29 Work press Mpa 18.5

New Hydraulic 4 Tons 4000 KG Diesel Forklift with CE  *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specification Specification FD40 1 Fuel model Diesel 2 Load capacity kg 4000 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 0 6 Fork dimension mm 1070×150×45 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 2800 9 Groud clearance mm 135 10 Overhead guard height mm 2230 11 Front overhang mm 500 12 Max travel speed km/h 18.5 13 Max lift speed mm/s 420 14 Max.traction power KN 20 15 Max. gradeability % 20 16 Total length with fork mm 4105 17 Total length without fork mm 3035 18 Total width mm 1400 19 Mast extended height mm 4270 20 Mast lowered height mm 2190 21 Tyres Front 250-15- 12PR 22 Type Rear 7.00-12-12PR 23 Wheelbase mm 1900 24 Tread mm 1160/1065 25 Service weight Kg 5300 26 Battery V/Ah 12/100 27 Engine model XINCHAI 4D30G31 28 Engine power kw/r.p.m 36.8 29 Work press Mpa 18.5

Small Hydraulic Diesel Smart Manual 3.5 Tons 3500 KG Mini Forklift Truck with Triple 4.5 Meters Container Mast *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specification Specification FD35 1 Fuel model Diesel 2 Load capacity kg 3500 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 100 6 Fork dimension mm 1070×125×50 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 2550 9 Groud clearance mm 135 10 Overhead guard height mm 2165 11 Front overhang mm 495 12 Max travel speed km/h 19 13 Max lift speed mm/s 480 14 Max.traction power KN 13.5 15 Max. gradeability % 20 16 Total length with fork mm 4065 17 Total length without fork mm 2995 18 Total width mm 1225 19 Mast extended height mm 4265 20 Mast lowered height mm 2060 21 Tyres Front 28x9-15-12PR 22 Type Rear 6.50-10-10PR 23 Wheelbase mm 1700 24 Tread mm 1000/970 25 Service weight Kg 4560 26 Battery V/Ah 12/80 27 Engine model XINCHAI    4D27G31 28 Engine power kw/r.p.m 36.8 29 Work press Mpa 18.5

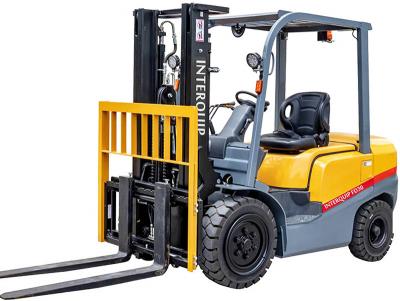

New CE EPA Engine Certificated 3 Tons Diesel Forklift with Forklift Attachments *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specification Specification FD30 1 Fuel model Diesel 2 Load capacity kg 3000 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 100 6 Fork dimension mm 1070×125×45 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 2400 9 Groud clearance mm 135 10 Overhead guard height mm 2165 11 Front overhang mm 495 12 Max travel speed km/h 19 13 Max lift speed mm/s 480 14 Max.traction power KN 13.5 15 Max. gradeability % 20 16 Total length with fork mm 3820 17 Total length without fork mm 2750 18 Total width mm 1225 19 Mast extended height mm 4265 20 Mast lowered height mm 2060 21 Tyres Front 28x9-15-12PR 22 Type Rear 6.50-10-10PR 23 Wheelbase mm 1700 24 Tread mm 1000/970 25 Service weight Kg 4350 26 Battery V/Ah 12/80 27 Engine model XINCHAI 4D27G31 28 Engine power kw/r.p.m 36.8 29 Work press Mpa 18.5

Internal Combustion 2.5 Tons Diesel Forklift with 6 Meters Lifting Height *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specification Model FD25 1 Fuel model Diesel 2 Load capacity kg 2500 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 100 6 Fork dimension mm 1070×122×40 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 2240 9 Groud clearance mm 120 10 Overhead guard height mm 2140 11 Front overhang mm 485 12 Max travel speed km/h 19 13 Max lift speed mm/s 550 14 Max.traction power KN 12.3 15 Max. gradeability % 20 16 Total length with fork mm 3610 17 Total length without fork mm 2540 18 Total width mm 1160 19 Mast extended height mm 4220 20 Mast lowered height mm 2060 21 Tyres Front 7.00-12-12PR 22 Type Rear 6.00-9-10PR 23 Wheelbase mm 1600 24 Tread mm 970/970 25 Service weight Kg 3800 26 Battery V/Ah 12/80 27 Engine model XINCHAI 4D27G31 28 Engine power kw/r.p.m 36.8 29 Work press Mpa 18.5

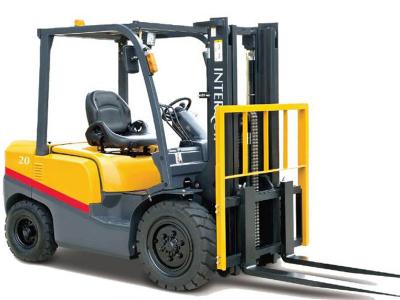

Fully Hydraulic Brand New 2 Tons Diesel Forklift Truck *The powerful engine with a stable high-efficiency transmission ensures full advantage of torque output *High-quality hydraulic elements specially designed for various working conditions *The well-designed mast provides safer operation and a wider front view. *Compact & refined body and reliable & firm overhead guard guarantees the unique charm of INTERQUIP forklift Specifications: Model FD20 1 Fuel model Diesel 2 Load capacity kg 2000 3 Load center mm 500 4 Lift height mm 3000 5 Full free lift height mm 100 6 Fork dimension mm 1070×122×40 7 Mast tilting angle Deg. 6/12 8 Min.turning radius mm 2220 9 Groud clearance mm 120 10 Overhead guard height mm 2140 11 Front overhang mm 448 12 Max travel speed km/h 19 13 Max lift speed mm/s 550 14 Max.traction power KN 12.3 15 Max. gradeability % 20 16 Total length with fork mm 3523 17 Total length without fork mm 2453 18 Total width mm 1160 19 Mast extended height mm 4220 20 Mast lowered height mm 2060 21 Tyres Front 7.00-12-12PR 22 Type Rear 6.00-9-10PR 23 Wheelbase mm 1600 24 Tread mm 970/970 25 Service weight Kg 3200 26 Battery V/Ah 12/80 27 Engine model XINCHAI 4D27G31 28 Engine power kw/r.p.m 36.8 29 Work press Mpa 18.5
