4X4WD Rough Terrain Forklift Truck with Japanese Yanmar Engine

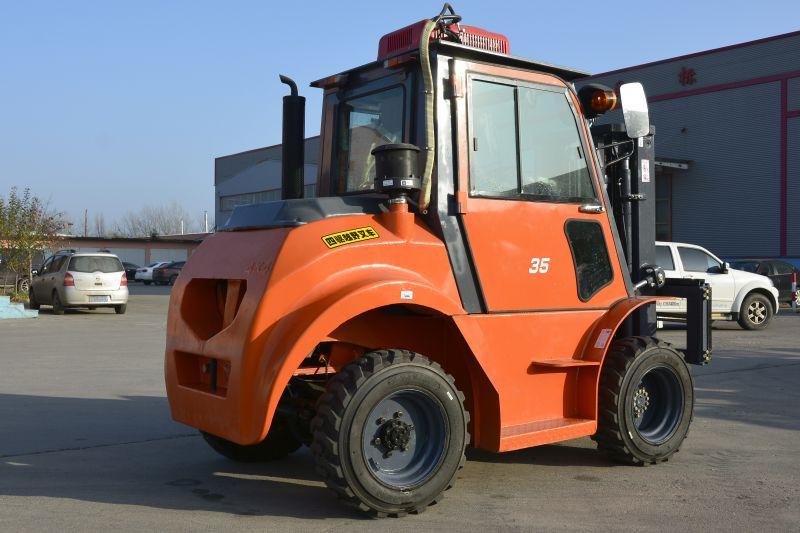

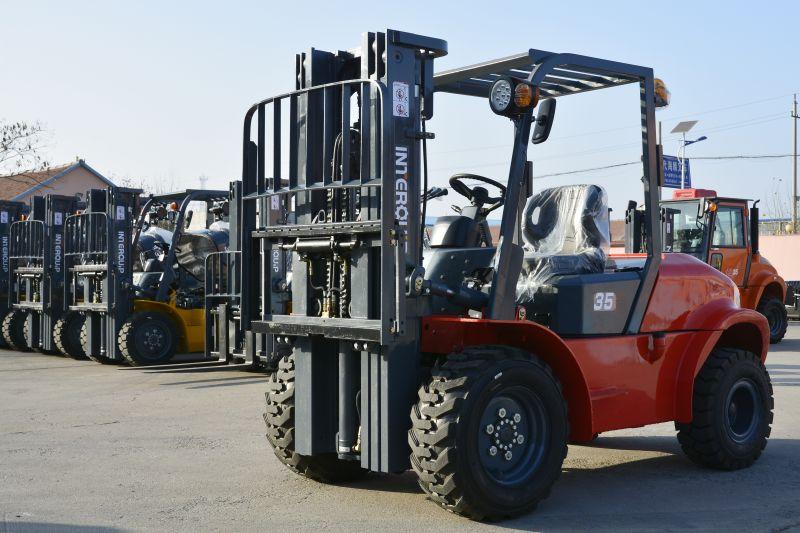

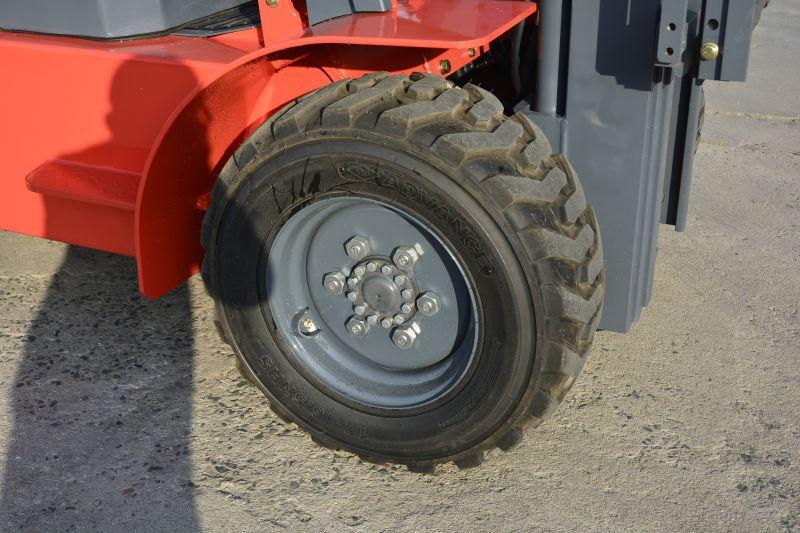

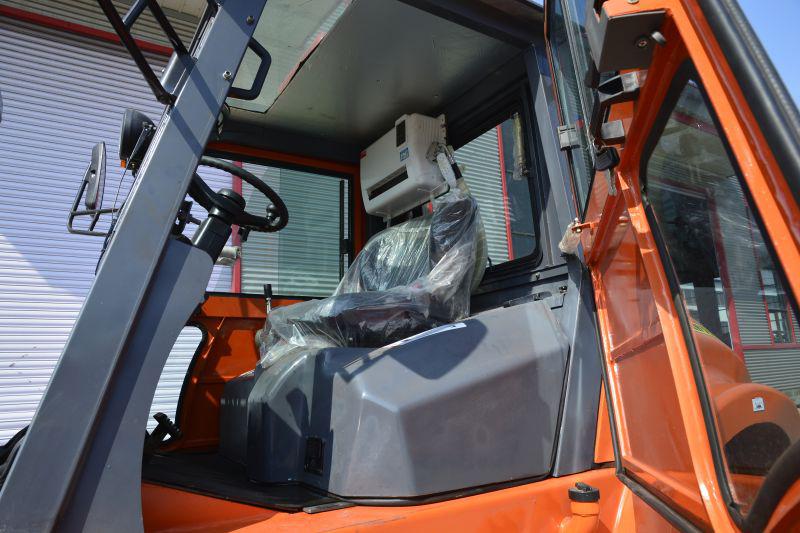

Two Driver 3.5 Ton Rough Terrain Forklift Advantages of compact all terrain forklift: 1. Adopt four-wheel drive. 2. The chassis is high. 3. Mini all terrain forklift can work on ordinary roads, and can also work on rough roads on mountain roads and mud roads. The tires have strong grip and do not slip. 4. The engine is powerful, and it adopts all-wheel drive and off-road tires. 5. It can run on hills, mountains, beaches, sand, snow, ice and muddy roads, and has good off-road performance. Specifications: Specifications Power Unit Diesel Operator Type Driver/Seat Transimission Bo× Type Automatic Transmission Rated Capacity kg 3500 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Pneumatic Tire Tire Size Front 12-16.5-14PR Rear 27x10-12-12PR Performance Lifting Speed Loaded mm/s 420 Lowering Speed Loaded mm/s 600 Unloaded 300 Traveling Speed Unloaded mm/s 22 Service brake Hydraulic - Pedal Parking brake Mechanical - Manual Max.Gradeability (Loaded) % 16 Front suspension mm 590 Minimum turning radius 2910 Mast Tilting Angle (Fwd/Bwd) deg 5/15 Dimensions Wheelbase mm 1850 Wheel base (front/rear) mm 1300/1205 Minimum ground clearance Mast mm 220 midpoint of the wheelbase 310 Over Length mm 2940 Over Width mm 1550 Overhead Guard Height mm 2210 Fork Size (L×W×T) mm 55x122x1070 Mast Height (Fork lowered) mm 2140 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 4930 Engine Brand  XINCHANG Model 4D30G31 Rated Power kw/rpm 36.8/2650 Rated torque n-m/rpm 174/1800 Displacement L 2.98

Two Drive 2.5ton Diesel Off-Road All Terrain Rough Terrain Forklift Advantages of rough terrain forklifts: 1. Adopt four-wheel drive. 2. The chassis is high. 3. 2.5 ton rough terrain forklift can work on ordinary roads, and can also work on rough roads on mountain roads and mud roads. The tires have strong grip and do not slip. 4. The engine is powerful, and it adopts all-wheel drive and off-road tires. 5. Off road fork truck can run on hills, mountains, beaches, sand, snow, ice and muddy roads, and has good off-road performance. off-road forklifts Specifications: Specifications Power Unit Diesel Operator Type Driver/Seat Transimission Box Type Automatic Transmission Rated Capacity kg 2500 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Pneumatic Tire Tire Size Front 12-16.5-14PR Rear 27x10-12-12PR Performance Lifting Speed Loaded mm/s 450 Lowering Speed Loaded mm/s 600 Unloaded 300 Traveling Speed Unloaded mm/s 22 Service brake Hydraulic - Pedal Parking brake Mechanical - Manual Max.Gradeability (Loaded) % 17 Front suspension mm 545 Minimum turning radius 2910 Mast Tilting Angle (Fwd/Bwd) deg 5/15 Dimensions Wheelbase mm 1850 Wheel base (front/rear) mm 1250/1205 Minimum ground clearance Mast mm 220 midpoint of the wheelbase 310 Over Length mm 2940 Over Width mm 1550 Overhead Guard Height mm 2210 Fork Size (L×W×T) mm 45x122x1070 Mast Height (Fork lowered) mm 2185 Battery (Voltage/Capacity) V/Ah 12/80 Truck Weight kg 4650 Engine Brand  XINCHANG Model 4D30G31 Rated Power kw/rpm 36.8/2650 Rated torque n-m/rpm 174/1800 Displacement L 2.98

Brand New Wheel 32 Ton Forklift Loader Feature: 1.The Z-shaped link mechanism designed especially for stone operating conditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view. 2.The extended wheelbase and wheel tread and ultra-high ballast realize good working stability of the front loader forklift. 3.The China-lIl engine, high reliability electronic control counter shaft transmission, and the reinforced dry-type drive axle are matched perfectly to save the fuel and reduce the consumption. 4.The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, including the forklifting and overturning of stones. 5.The 23.5-25 24PR engneering tires are suitable to diversified severe road conditions, featuring powerful off-road performance. The optional tire chains are at your choice. 6.The high ground clerance,small tuming radius, and high depature angle of the class is can adapt to various complicated operation conditions. Specification: Model ITQ32T Operating weight 34,000kg Engine model WD10G270E201 Rated engine power 199kw Rated rotate speed 2200r/nin Max.torque 1100N.m Max.dumping height 3100mm            Rated load 32tons @3100mm height, NO.of shifts Forward 4 For Reverse 2 Forward/Reverse 1 0-6.5km/h Forward/Reverse 2 0-12.3km/h Forward 3 0-24km/h Forward 4 0-41km/h Grade ability ≥25° Turning angle 35°±1° Overall length 10100mm Overall width 3220mm Overall height 3730mm Wheel base 4300mm Track base 3197mm dimension of fork 1500*mm200*mm120mm Torque converter Model: YJ375X3 ratio:3.166 Cycling time 16s Tire type 29.5-25

Brand New 22.8 ton 133kw Hydraulic Crawler Excavator *High-end first-class core configuration Comply with Stage III emission Cummins engine, with excellent power The Isuzu engine complies with Stage III emissions, saving fuel and energy. International brand main pump and main valve World-brand hydraulic components ensure high reliability of the hydraulic system *Higher reliability and durability Greater reliability and durability Rugged, high-strength body Reinforced boom, stick, and bucket structural parts *More coordinated comfort Silent, comfortable and highly rigid new cab Color LCD monitor for convenient monitoring and maintenance Multiple operating modes available Specifications MODEL Unit ITQ 220.9 Operating weight  Ton 22.8 Bucket capacity  m³ 1.0 Engine model 五十铃4HK1X 康明斯QSB7.0 Rated power  kw/r/min  133/2000 124/1800 Volume of fuel tank  L 420 Travel speed  km/h 5.2/3.5 Swing speed r/min 11.5 Max climbing degree ° 70 Bucket digging force at power max  ISO KN 157 Average grounding pressure KPA 46.5 Hydraulic pump model     InLine V90N130  KPM 3V112DT Maximum flow  L/min 250*2 228*2 Setting pressure  MPa 37 Volume of hydraulic tank  L 246 A  Overall length mm 9560 B  Overall width mm 2980 C  Overall height （to top of boom） mm 3040 D  Overall height （to top of cab） mm 3120 E  Counterweight ground clearance mm 1065 F  Min. ground clearance   mm 466 G  Tail swing radius mm 2720 H  Track grounding length  mm 3445 J  Track length mm 4260 K  Track gauge mm 2380 L  Track width  mm 2980 M  Track shoe width mm 600 N  Turntable width mm 2700 O  Max. digging height mm 9275 P  Max. dumping height mm 6560 Q  Max. digging depth  mm 6515 R  Max. vertical wall digging depth mm 5915 S  Max. digging depth for 2.5m horizontal plane  mm 6380 T  Max. digging reach  mm 9865 U  Max.digging reach at ground level  mm 9680 V  Min. swing radius   mm 3630 W  Max. height at min swing radius mm 7670 X Distance from swing center to rear  mm 2720 Z  Height of counterweight  mm 2120 A1 Grounding length (in transportation) mm 4850 Arm length mm 2900 Boom length  mm 5700

Brand New Excavator for Hard Rock 53 ton Heavy Duty Equipment *High-end first-class core configuration Isuzu engines comply with Stage III emissions, saving fuel and energy. International brand main pump and main valve World-brand hydraulic components ensure high reliability of the hydraulic system *Greater reliability and durability Rugged, high-strength body Reinforced boom, stick, and bucket structural parts *More coordinated comfort Highly rigid new cab, quiet and comfortable Color LCD monitor for convenient monitoring and maintenance Various working modes and optional sizes Specifications MODEL Unit ITQ 560.9 Dual power Operating weight  Ton 53 Bucket capacity m³ 2.8-4.0 Engine model YKVFT-315L2  QSL8.9 Rated power  kw/r/min 280 264/2100 Volume of fuel tank L 500 Travel speed  km/h 4.8/3.0 Swing speed r/min 9 Max climbing degree ° 30 Bucket digging force at power max ISO KN 298 Average grounding pressure KPA 95 Hydraulic pump model InLine     V90N230DP Maximum flow  L/min 414x2 Setting pressure  MPa 37 Volume of hydraulic tank  L 480 A  Overall length  mm 13180 B  Overall width mm 3340 C  Overall height （to top of boom） mm 3780 D  Overall height （to top of cab） mm 3280 E  Counterweight ground clearance mm 1300 F  Min. ground clearance   mm 720 G  Tail swing radius  mm 4850 H  Track grounding length  mm 4360 J  Track length mm 5390 K  Track gauge mm 2740 L  Track width  mm 3340 M  Track shoe width  mm 600 N  Turntable width mm 3385 O  Max. digging height mm 10760 P  Max. dumping height mm 7400 Q  Max. digging depth  mm 7320 R  Max. vertical wall digging depth  mm 6695 S  Max. digging depth for 2.5m horizontal plane mm 7150 T  Max. digging reach mm 11660 U  Max.digging reach at ground level  mm 11440 V  Min. swing radius mm 4825 W  Max. height at min swing radius  mm 9250 X Distance from swing center to rear  mm 4850 Z  Height of counterweight  mm 2860 A1 Grounding length (in transportation)  mm 6820 Arm length mm 3400 Boom length mm 7060

Construction Machinery Small Front End Wheel Loader 1. Humanized design 2. European-style appearance, luxurious interior cab. 3. Full glass cockpit door, wide field of vision 4. Brake pipe with protective cover 5. The unique external setting of the injector is convenient for concentrated oil injection. 6. Fine line design, reasonable pipeline layout, easy maintenance 7. Automatic leveling, reducing driver fatigue  Specification Model   920 Rated load kg 1800 Operation total weight kg 4700 Overall Length mm 5700 Overall Width mm 2000 Overall Height mm 2850 Spread of axles mm 2250 Wheelbase mm 2200 ground clearance mm 240 Bucket width mm 2000 Turning radius (tyre center) mm 4800 Turning radius (outside of bucket in transportation position) mm 5800 Max Working height mm 4000 Max unloading height mm 3500 max unloading distance mm 800 Max steering angle ° 38 Trinomial sum sec 10.5 Working hydraulic system pressure Mpa 18 Tyre   1670-20 Rated power (Yunnei)  kW 76 Rated power (Yunnei)  kW   Rated speed r/min 2200 Bucket capacity m³ 1 Bucket capacity(Long arm)option m³ 1 Max speed km/h 38 Forward gear I km/h 6.8 Forward gear II km/h 12 Rear gear I km/h 6.5 Rear gear II km/h 11.8 Max breakout force KN 120 Max traction KN 110 Max climbing ablity ° 29

20 Ton Backhoe Excavator Long Reach Compact Excavator *High-end first-class core configuration Yanmar engines comply with Stage III emissions, saving energy and fuel. International brand main pump and main valve World-brand hydraulic components ensure high reliability of the hydraulic system *Greater reliability and durability Rugged, high-strength body Reinforced boom, stick, and bucket structural parts *More coordinated comfort Highly rigid new cab, quiet and comfortable Color LCD monitor for convenient monitoring and maintenance Multiple operating modes available Specifications MODEL Unit ITQ 205.9 Operating weight Ton 21.3 Bucket capacity  m³ 0.93 Engine model 广康QSB7.0 三菱 4M50 Rated power  kw/r/min  124/2000  118/2000 Volume of fuel tank L 420 Travel speed km/h 5.2/3.5 Swing speed r/min 11.5 Max climbing degree ° 70 Bucket digging force at power max   ISO KN 157 Average grounding pressure KPA 46.5 Hydraulic pump model EDDIE FMP112APDT  KPM K3V112DT Maximum flow  L/min 215*2 228*2 Setting pressure  MPa 37 Volume of hydraulic tank  L 246 A  Overall length  mm 9560 B  Overall width mm 2780 C  Overall height （to top of boom） mm 3040 D  Overall height （to top of cab） mm 3120 E  Counterweight ground clearance  mm 1065 F  Min. ground clearance   mm 466 G  Tail swing radius  mm 2720 H  Track grounding length mm 3260 J  Track length  mm 4060 K  Track gauge mm 2180 L  Track width  mm 2780 M  Track shoe width  mm 600 N  Turntable width mm 2700 O  Max. digging height mm 9275 P  Max. dumping height  mm 6560 Q  Max. digging depth  mm 6515 R  Max. vertical wall digging depth  mm 5915 S  Max. digging depth for 2.5m horizontal plane mm 6380 T  Max. digging reach mm 9865 U  Max.digging reach at ground level   mm 9680 V  Min. swing radius  mm 3630 W  Max. height at min swing radius  mm 7670 X Distance from swing center to rear  mm 2720 Z  Height of counterweight  mm 2120 A1 Grounding length (in transportation)  mm 4850 Arm length mm 2900 Boom length mm 5700

Small Wheel Loader Front End Loder in Agriculture 1. Humanized design 2. European-style appearance, luxurious interior cab. 3. Full glass cockpit door, wide field of vision 4. Brake pipe with protective cover 5. The unique external setting of the injector is convenient for concentrated oil injection. 6. Fine line design, reasonable pipeline layout, easy maintenance 7. Automatic leveling, reducing driver fatigue  Specification Model   925 Rated load kg 2500 Operation total weight kg 5800 Overall Length mm 6100 Overall Width mm 2100 Overall Height mm 2850 Spread of axles mm 2050 Wheelbase mm 2250 ground clearance mm 240 Bucket width mm 2200 Turning radius (tyre center) mm 4800 Turning radius (outside of bucket in transportation position) mm 5800 Max Working height mm 4000 Max unloading height mm 3500 max unloading distance mm 800 Max steering angle ° 38 Trinomial sum sec 10.5 Working hydraulic system pressure Mpa 18 Tyre   1670-24 Rated power (Yunnei)  kW 92 Rated power (Yunnei)  kW   Rated speed r/min 2200 Bucket capacity m³ 1.3 Bucket capacity(Long arm)option m³ 1.3 Max speed km/h 38 Forward gear I km/h 6.8 Forward gear II km/h 12 Rear gear I km/h 6.5 Rear gear II km/h 11.8 Max breakout force KN 120 Max traction KN 110 Max climbing ablity ° 29
