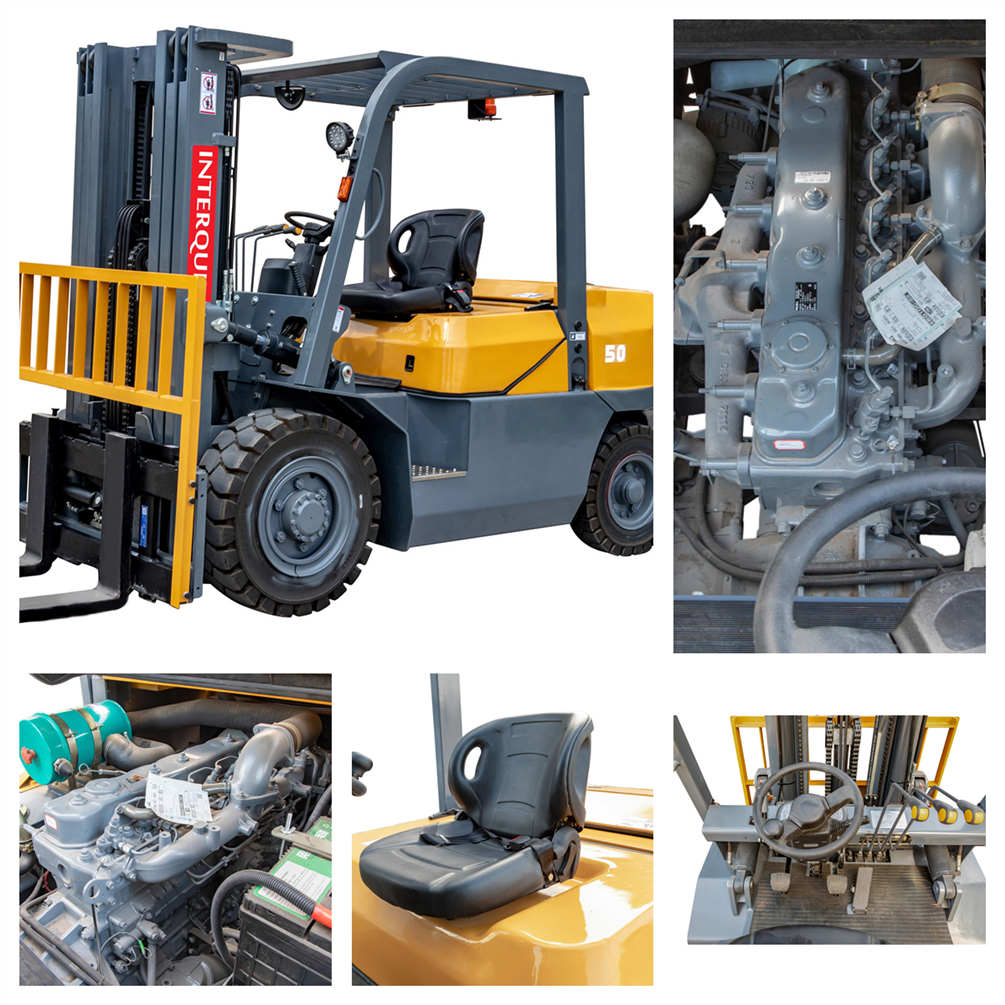

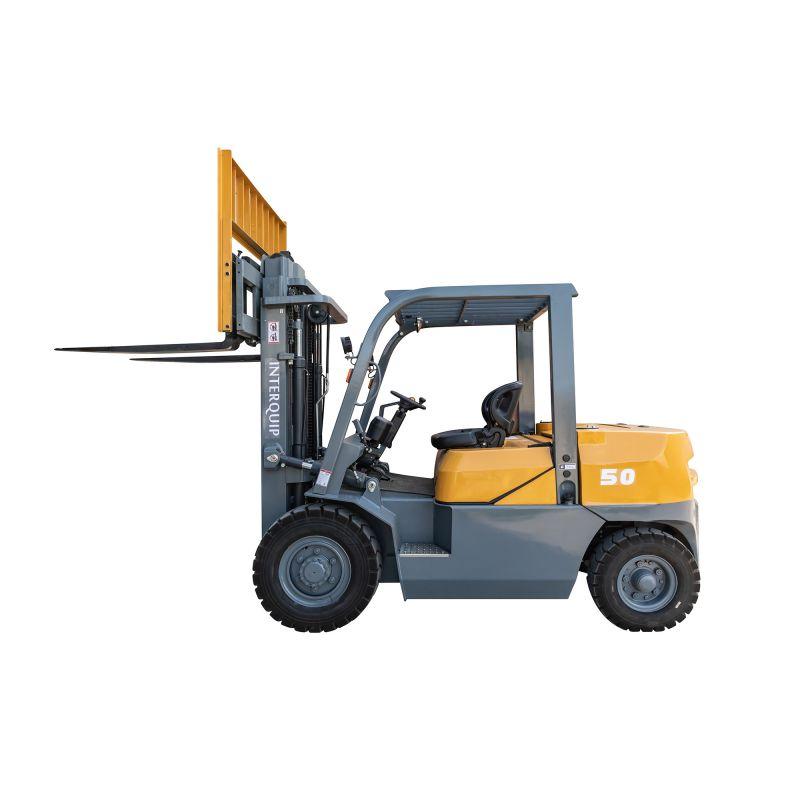

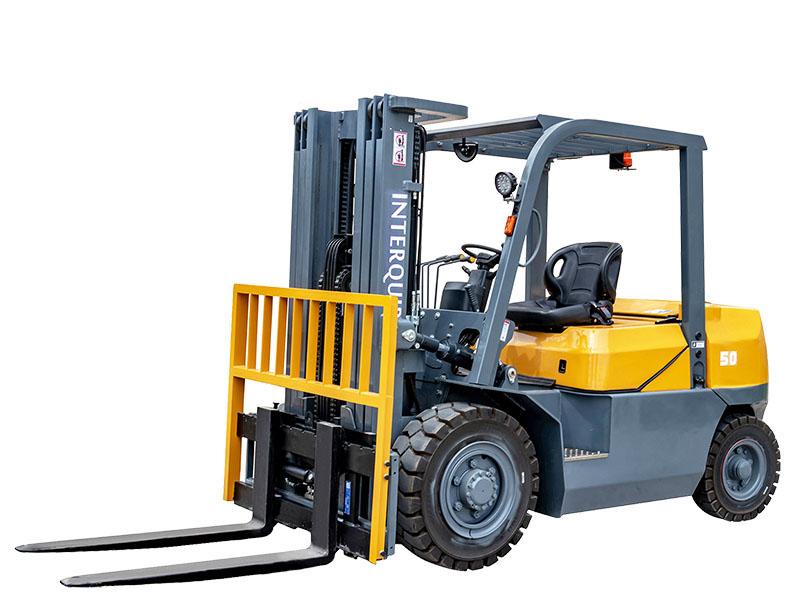

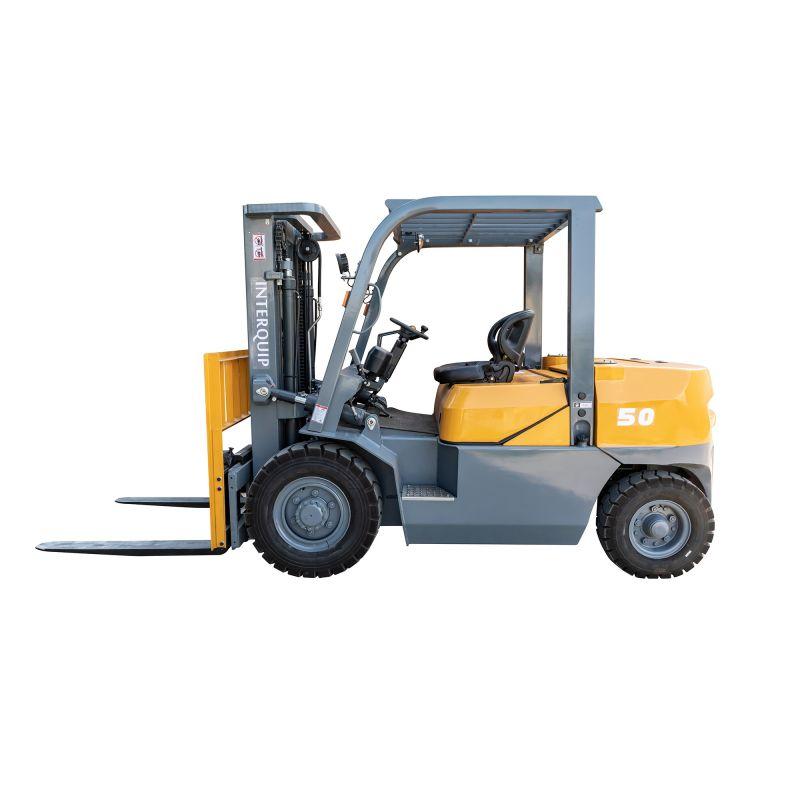

Single Front Wheel 5 ton Diesel Forklift

8 Ton Diesel Forklift Truck with Spare Parts Rated Capacity: 8 Ton/ 8000 kg Engine: Chaochai 6102/ISUZU Engine 6BG1 Lifting Height: 3-6m (Duplex/Triple) Tyre: Pneumatic Tyre/Solid Tyre 8 tonne forklift Specifications: Model UNIT FD80T Specifications Power Unit Diesel Operator Type Driver/seat Transmission Box Type Electronic hydraulic transmission Rated Capacity kg 8000 Load Center mm 600 Max.Lifting Height mm 3000 Tire Type Pneumatic Tyre Tire Number  Front 4 Rear 2 Tire Size  Front 9.00×20-14PR Rear 8.25×15-14PR Performance Lifting Speed Loaded mm/s 400 Unloaded 420 Lowering Speed  Loaded mm/s 450 Unloaded 350 Travelling Speed  Loaded km/h 25 Unloaded 26 Max.Gradeability (Loaded) % 25 Max.Drawbar Pull (Loaded) kg 5600 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 170 Turning Radius mm 3500 Dimensions Overall Length (with fork) mm 5350 Overall Width mm 2000 Overhead Guard Height mm 2560 Fork Size (LxWxT) mm 1220x175x70 Mast Height (Fork lowered) mm 2585 Battery (Voltage/Capacity) V/Ah 2×12/90 Truck Weight kg 11000 Fuel Tank Capacity L 170 Engine Brand  ISUZU CHAOCHAI Model 6BG1 6102 Rated Power kw/rpm 82.3/2000 80.8/250 Rated torque n-m/rpm 418/1500 354/1650 Number Of Cylinder 6 6 Displacement 6.49 5.78 Packing

 Counterbalance 3.5 Ton Mini Electric/Battery Forklift Performance —Very small front suspension design, improved working stability, small self weight, reduced energy consumption, improved endurance —The driving motor is arranged horizontally, and the battery is sunk at the bottom of the vehicle to improve the driving stability —High speed ratio driving axle box assembly is adopted to improve working efficiency, improve climbing ability, reduce energy consumption and noise —New large screen LED instrument, good visibility, intuitive reading, friendly human-computer interface —Ergonomic anti fatigue seat, which can be adjusted at multiple angles according to the driver's needs —The operator can adjust the steering wheel according to his position Safety —AC drive regenerative braking —Handbrake parking brake —Pedal hydraulic service brake —Quick cut-off valve —Lowering speed limit valve —Tilt lock valve —Overload relief valve Specification  Item Description Unit FB35 Features Power Unit Lithium Battery Drive Mode Sit Type Rated Load Kg 3500 Loade Center Distance mm 500 Lifting Height mm 3000 Weight Deadweight kg 5450 Battery Weight kg 270 Deadweight without Battery kg 5450 Dimension Front Suspension mm 480 Wheelbase mm 1680 Mast Tilt Angle(Forward/backward) 。 6/12 Mast Static Height mm 2180 Free Lifting Height mm 150 Max.Height when lifting mm 4235 Overhead Guard Height mm 2150 Seat Height mm 130 Driver's Height mm 1130 Overall Length (till fork surface) mm 2595 Overall Width mm 1220 Fork Dimension（LxWxH） mm 1220×125×45 Min.Ground Clearance（full load） mm 125 Min.Truning Radius mm 2290 Tire Tie Type - Pneumatic Qty.of Tires（front/rear） - 2×/2 Front Tire Spec - 28X9-15 Rear Tire Spec - 18X7-8 Performance Travel Speed（full load/no load） km/h 13/15 Lifting Speed（full load/no load） mm/s 250/360 Max. Traction Forcefull load/no load kN 15.5/15.0 Gradeability full load/no load % 15/15 Drive System Travel Motor Power KW 16.6(AC) Working Motor Power KW 13.5(AC) Standard Battery (voltage/capacity) V/Ah 80/404 Standard charger specifications (output) V/A 80/100

2.5 Ton Triple 4.5 m Mast Electric/Battery Forklift with Side Shift Performance —Very small front suspension design, improved working stability, small self weight, reduced energy consumption, improved endurance —The driving motor is arranged horizontally, and the battery is sunk at the bottom of the vehicle to improve the driving stability —High speed ratio driving axle box assembly is adopted to improve working efficiency, improve climbing ability, reduce energy consumption and noise —New large screen LED instrument, good visibility, intuitive reading, friendly human-computer interface —Ergonomic anti fatigue seat, which can be adjusted at multiple angles according to the driver's needs —The operator can adjust the steering wheel according to his position Safety —AC drive regenerative braking —Handbrake parking brake —Pedal hydraulic service brake —Quick cut-off valve —Lowering speed limit valve —Tilt lock valve —Overload relief valve Specification  Item Description Unit FB25 Features Power Unit Lithium Battery Drive Mode Sit Type Rated Load Kg 2500 Loade Center Distance mm 500 Lifting Height mm 3000 Weight Deadweight kg 4250 Battery Weight kg 145 Deadweight without Battery kg 4250 Dimension Front Suspension mm 470 Wheelbase mm 1500 Mast Tilt Angle(Forward/backward) 。 6/12 Mast Static Height mm 2080 Free Lifting Height mm 140 Max.Height when lifting mm 4129 Overhead Guard Height mm 2130 Seat Height mm 130 Driver's Height mm 1110 Overall Length (till fork surface) mm 2369 Overall Width mm 1200 Fork Dimension（LxWxH） mm 1220×125×45 Min.Ground Clearance（full load） mm 125 Min.Truning Radius mm 2070 Tire Tie Type - Pneumatic Qty.of Tires（front/rear） - 2×/2 Front Tire Spec - 7.00-12-12PR Rear Tire Spec - 18X7-8-14PR Performance Travel Speed（full load/no load） km/h 13/15 Lifting Speed（full load/no load） mm/s 260/460 Max. Traction Forcefull load/no load kN 13.5/12.5 Gradeability full load/no load % 15/15 Drive System Travel Motor Power KW 11.1(AC) Working Motor Power KW 12(AC) Standard Battery (voltage/capacity) V/Ah Standard charger specifications (output) V/A 50.4/240

4X4WD Rough Terrain Forklift Truck with Japanese Yanmar Engine Advantages of rough terrain forklifts: 1. Adopt four-wheel drive. 2. The chassis is high. 3. It can work on ordinary roads, and can also work on rough roads on mountain roads and mud roads. The tires have strong grip and do not slip. 4. The engine is powerful, and it adopts all-wheel drive and off-road tires. 5. It can run on hills, mountains, beaches, sand, snow, ice and muddy roads, and has good off-road performance. Specifications: Specifications Power Unit Diesel Operator Type Driver/Seat Transimission Bo× Type Automatic Transmission Rated Capacity kg 3500 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Tire Size Front 12-16.5-10PR Rear 12-16.5-10PR Performance Lifting Speed Loaded mm/s 420 Lowering Speed Loaded mm/s 600 Unloaded 300 Traveling Speed Unloaded mm/s 22 Service brake Hydraulic - Pedal Parking brake Mechanical - Manual Max.Gradeability (Loaded) % 16 Front suspension mm 590 Minimum turning radius 2910 Mast Tilting Angle (Fwd/Bwd) deg 5/15 Dimensions Wheelbase mm 1840 Wheel base (front/rear) mm 1250/1320 Minimum ground clearance mm midpoint of the wheelbase 250 Over Length mm 3090 Over Width mm 1600 Overhead Guard Height mm 2450 Fork Size (L×W×T) mm 45x150x1070 Mast Height (Fork lowered) mm 2235 Battery (Voltage/Capacity) V/Ah 12/80 x 2 pcs Truck Weight kg 5100 Engine Brand  Model YN4H055-34VE Rated Power kw/rpm 36.8/2400 Rated torque n-m/rpm 185/1600-1800 Displacement L 2.543
