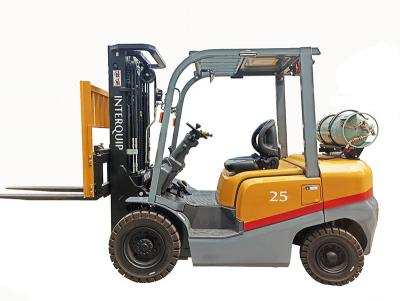

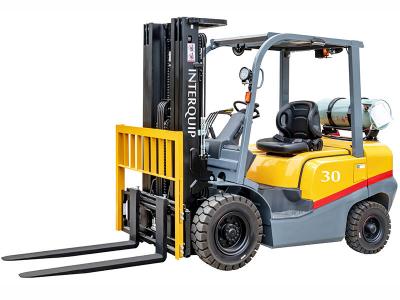

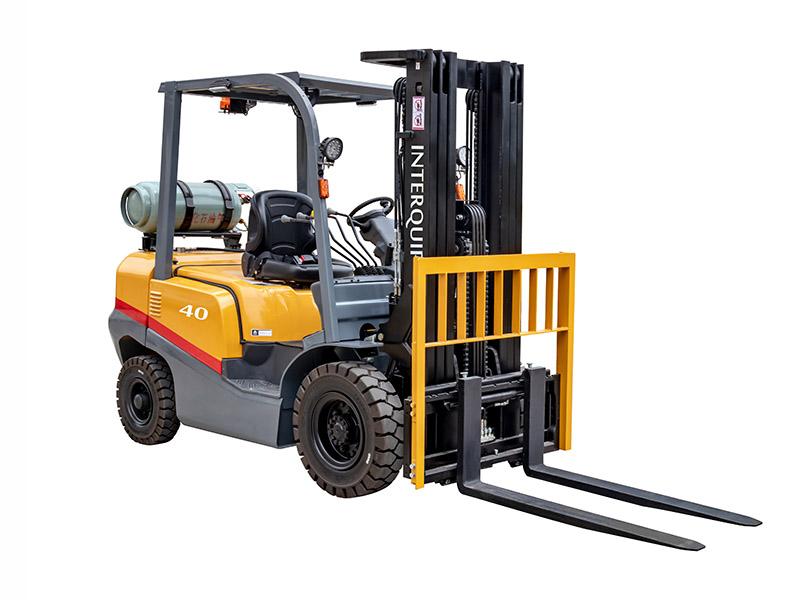

Four Wheels 4 Ton LPG/Gasoline/Petrol Forklift Truck
Feature:
Adopt gradeability improving style electronic hydraulic transmission, compare with other models: efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10 decreased.
Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
Introducing advances technology from Germany, the unique single chain has greatly enhanced he front view while working.
The new suspension system, adjustable seat, allowing the driver to feel more comfortable and reducing fatigue during long operations.
Specifications:
|
Model |
UNIT |
FG40T |
|
|
Specifications |
Power Unit |
|
LPG & Gasoline |
|
Operator Type |
|
Driver/seat |
|
|
Transmission Box Type |
|
Electronic hydraulic transmission |
|
|
Rated Capacity |
kg |
4000 |
|
|
Load Center |
mm |
500 |
|
|
Max. Lifting Height |
mm |
3000 |
|
|
Tyre Type |
|
Pneumatic Tyre |
|
|
Tyre Number(Front/Rear) |
|
2/2 |
|
|
Tyre Size (Front/Rear) |
|
250-15-16PR/6.5-10-10PR |
|
|
Performance |
Lifting Speed (Loaded/Unloaded) |
mm/s |
480/520 |
|
Lowering Speed (Loaded/Unloaded) |
mm/s |
480/450 |
|
|
Travelling Speed (Loaded/Unloaded) |
km/h |
19/20 |
|
|
Max. Gradeability (Loaded) |
% |
21 |
|
|
Max. Drawbar Pull (Loaded) |
n |
18 |
|
|
Mast Tilting Angle (Fwd/Bwd) |
deg |
6/12 |
|
|
Free Lifting Height |
mm |
150 |
|
|
Turning Radius |
mm |
2560 |
|
|
Dimensions |
Overall length (without fork) |
mm |
2820 |
|
Overall Width |
mm |
1300 |
|
|
Overhead Guard Height |
mm |
2130 |
|
|
Fork Size (LxWxT) |
mm |
1220×150×50 |
|
|
Mast Height (Fork lowered) |
mm |
2140 |
|
|
Battery(Voltage/Capacity) |
V/Ah |
12/90 |
|
|
Truck Weight |
kg |
5100 |
|
|
Fuel tank capacity |
L |
70 |
|
|
Engine |
Brand |
|
NISSAN |
|
Model |
|
K25 |
|
|
Rated Power |
kw/rpm |
37.4/2300 |
|
|
Rated torque |
n-m/rpm |
176.5/1600 |
|
|
Number of cylinder |
|
4 |
|
|
Displacement |
|
2.49 |
|
